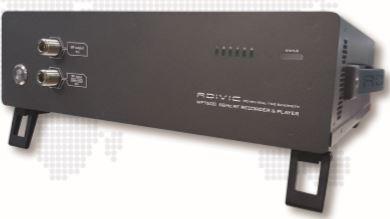

MP7600 6GHz RF Recorder

MP7600 6GHz RF Recorder

Key Features

  • Ultra-high frequency coverage from 300 KHz to 6.0 GHz
  • Pre-trigger function to keep your valuable record data even before the trigger event
  • 100MHz super wide bandwidth capable of simultaneously record/playback of 16 NTSC TV channels
  • MP7600 can have a maximum of 7 sets, synchronized in parallel, RF record/playback
  • 16-bit high resolution of the ADC/DAC
  • Smart AGC to extend usable dynamic range to greater than 150dB
  • High linearity to accommodate strong & weak signals
  • Additional traces for maximum/minimum holds
  • 20+ markers for easy signal identification
  • Baseband IQ data formats compatible to MATLAB

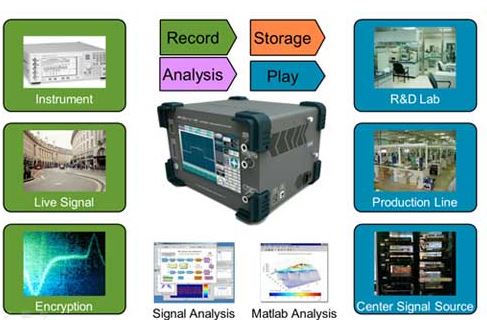

  • Software utility support including I/Q data extractor and file segmentation
  • 2.5 inches SSD x4 internal drive bays (4 X 480 GB by default, 1 TB x4 upgradable
  • 1PPS, IRIG-B support (Optional)

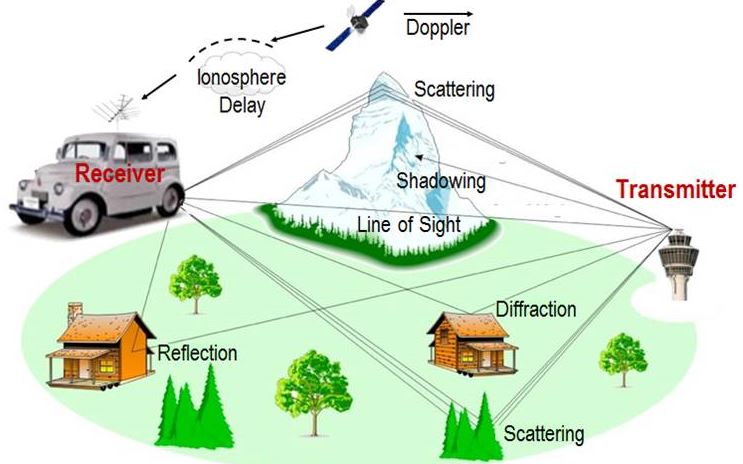

Test your product with the Real-World signals:

  • Eventually your Receiver has to receive the real-world signal, yet,…
  • None of the existing signal generators can 100% emulate the real world signals,
  • Only the RF recorder/player can bring back repeatable real world RF signals to your lab





When will you need a RF recorder ?

  • Your DTV/DAB/GPS receiver chip can’t decode properly in certain location
  • Your receiver works fine in some locations, however doesn’t in some other locations.
  • Virtual signal source, can be any signal generator
