All standards in one: QAM(J.83A/B/C), 8VSB, DVB-T/H/T2, DVB-S/S2 and DTMB

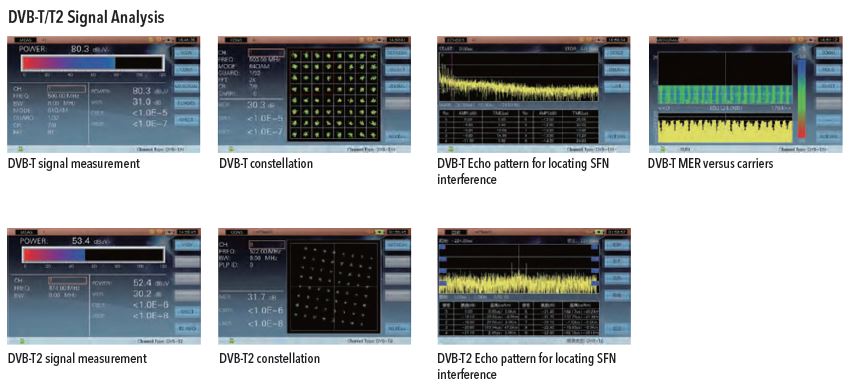

＊ Digital/Analog TV and Satellite TV analysis

＊ MPEG2 Transport stream analyzer and monitoring via TS-ASI input &RF input

＊ Fast spectrum analysis with 5 ~ 2150 MHz frequency span

＊ DSP Technology to support different Video decoding: MPEG-2 , MPEG-4 and H.264 for 1080i, 720P and 576i, support PAL/NTSC/SECAM color system

＊ Support SD&HD Video format

＊ DVB-CI module (Conditional Access) for encrypted channels

＊ TS-ASI input and output

＊ TS record and TS replay

＊ IPTV analysis option

＊ GPS option

＊ HDMI, LAN and USB interface

＊ Easy to use

＊ High resolution 7" TFT LCD with bright display for indoors and outdoors use

＊ W245×H194×L105, light weight.

＊ Working time >5 hours (battery)
